On 8/24/2024 11:08 AM, Snag wrote:
On 8/24/2024 12:04 PM, Bob La Londe wrote:
On 8/24/2024 10:00 AM, Bob La Londe wrote:
Silly setup, but it worked.
>
https://www.yumabassman.com/wp-content/uploads/2024/08/Setup.jpg
>
>
>

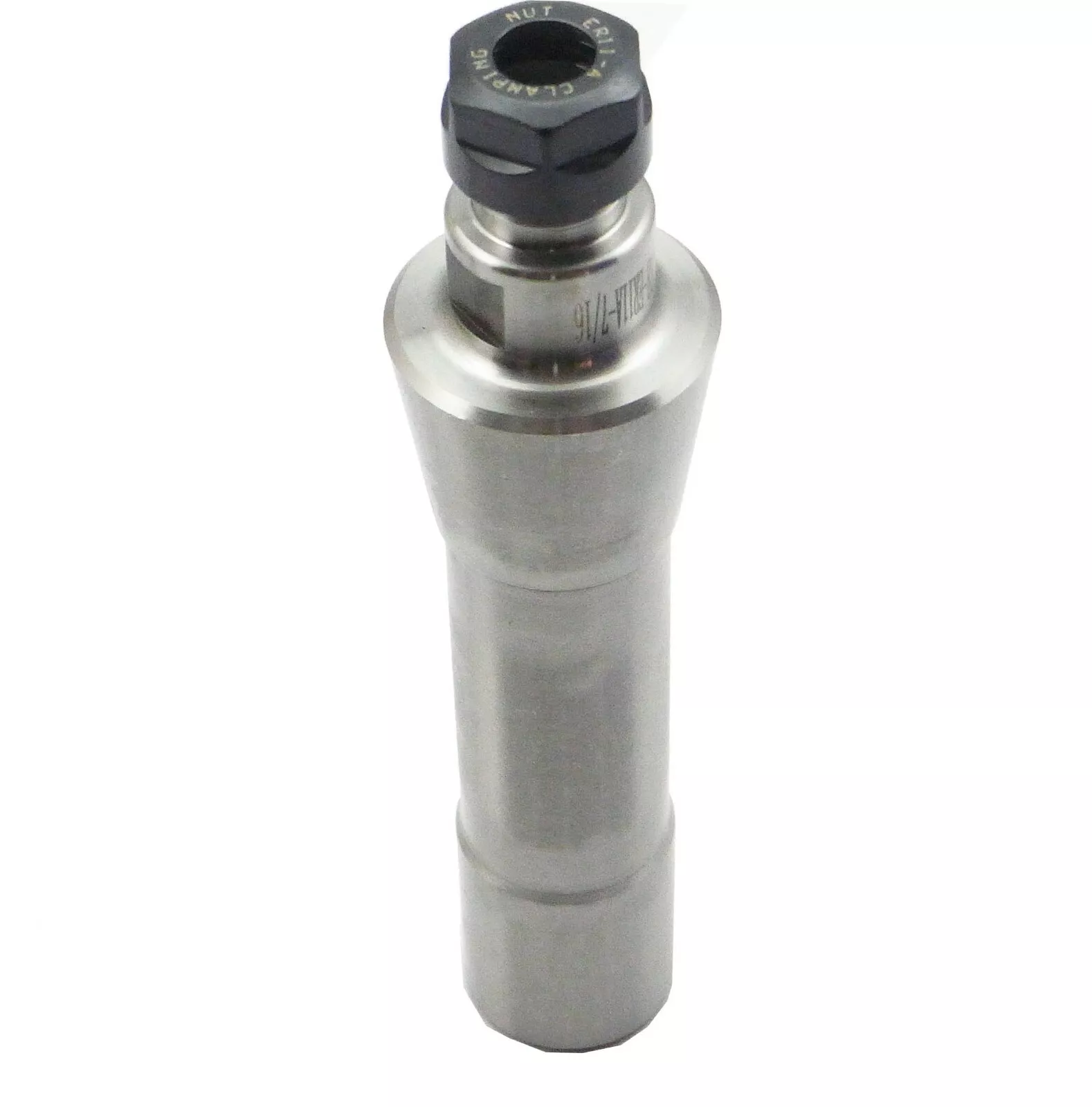

Something like this ER11 R8 collet chuck might have been better,
>
https://www.yumabassman.com/wp-content/uploads/2024/08/ER11-R8.webp
>
but the crazy setup did work. In fact this is the third time I have made a mold using this setup with cross pins.
>
I actually have an R8-ER16, but the collet nut didn't give me enough clearance to do the job.
>
>
My current silly setup is a 1/2" piece of steel plate bolted to a faceplate . It will be a fixture to hold a connecting rod so I can use the lathe and my dremel fixture to open up the wrist pin hole . This is part of the Arctic Cat 600 to 660 performance upgrade . That boy is gonna kill himself ...
No matter how sketchy the setup, just make sure it can't break free and chase you across the room, because I can guarantee if it does you will not out run it.
