Re: LT Spice looks

"Liz Tuddenham" <liz@poppyrecords.invalid.invalid> wrote in message news:1r307zo.v2hb321oo3t6gN%liz@poppyrecords.invalid.invalid...

Edward Rawde <invalid@invalid.invalid> wrote:
>
[...]

>
If the netlist and PCB layout is correct then why waste time on making the
schematic look like you want it, only to be told by someone else that they
would have drawn it completely differently?

>

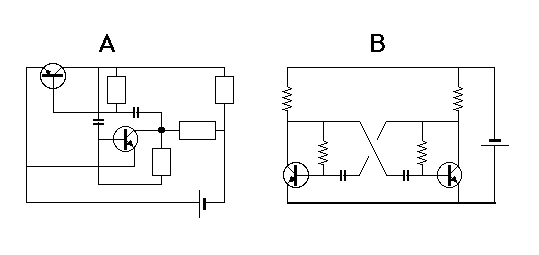

If you were a service engineer with the customer breathing down your
neck, which diagram would you prefer, 'A' or 'B' ?
>
http://www.poppyrecords.co.uk/other/CircuitDiagrams.gif

When I was a service engineer there was no such thing as a schematic and I often had to make do without a circuit diagram at all.
On rare occasions a repair had to wait for a circuit diagram to arrive by post and when it did it could easily contain circuit A.

I'm not suggesting that your B layout isn't preferable but in the real world A will often be encountered.

>
--
~ Liz Tuddenham ~
