Re: 70s tech- rally nav computer

TTman wrote:

I designed this back in the late 70s .Third iteration, manual layout
with tape... 8039 processor 2716 UV eprom
https://www.dropbox.com/scl/fi/z5hx6cz3pbfl3hgj7f39j/20250126_103955.jpg?rlkey=z79wm7sfre3yl7z63e6cvvofx&st=cct6w9gh&dl=0
>
https://www.dropbox.com/scl/fi/rytz8occb61uiicqhz54g/20250126_104023.jpg?rlkey=uqf2lwmuoka57xmxz53fa2vr7&st=e8y5oxpz&dl=0

Thank you for sharing. My PCB paraphenalia: pads, handtape, and other
masking materials; have sat unused for decades. My project for today
is to migrate from a PAKRATT PK-232 to an All-in-one-Cable (AIOC).
    A company named Advanced Electronic Applications built the PK-232
back in 1987. Its PCB brims with chips:

<https://www.radiomuseum.org/images/radio/advance_electric_co/pakratt_pk_232_698089.jpg>

    The AIOC fully replicates PK-232 functionality, and adds many more
modes. It's essentially a STM32F302 surrounded by I/O interface components.

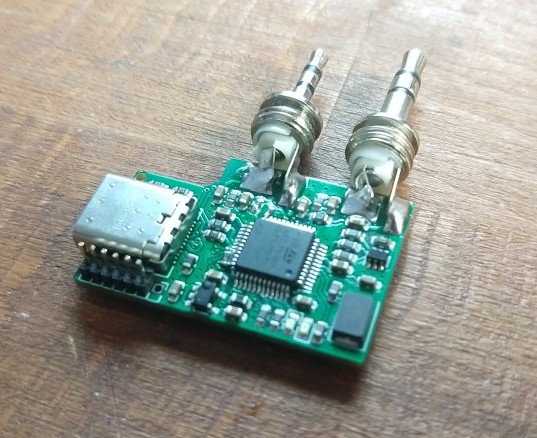

Here's a picture of the component side:

<https://raw.githubusercontent.com/skuep/AIOC/master/doc/images/k1-aioc-photo.jpg>

And a picture of the other side:

<https://raw.githubusercontent.com/skuep/AIOC/master/doc/images/k1-aioc-dfu.jpg>

Danke,

--
Don, KB7RPU, https://www.qsl.net/kb7rpu
